Oval Gear Flow Meters K400
ID: #1042524
Description

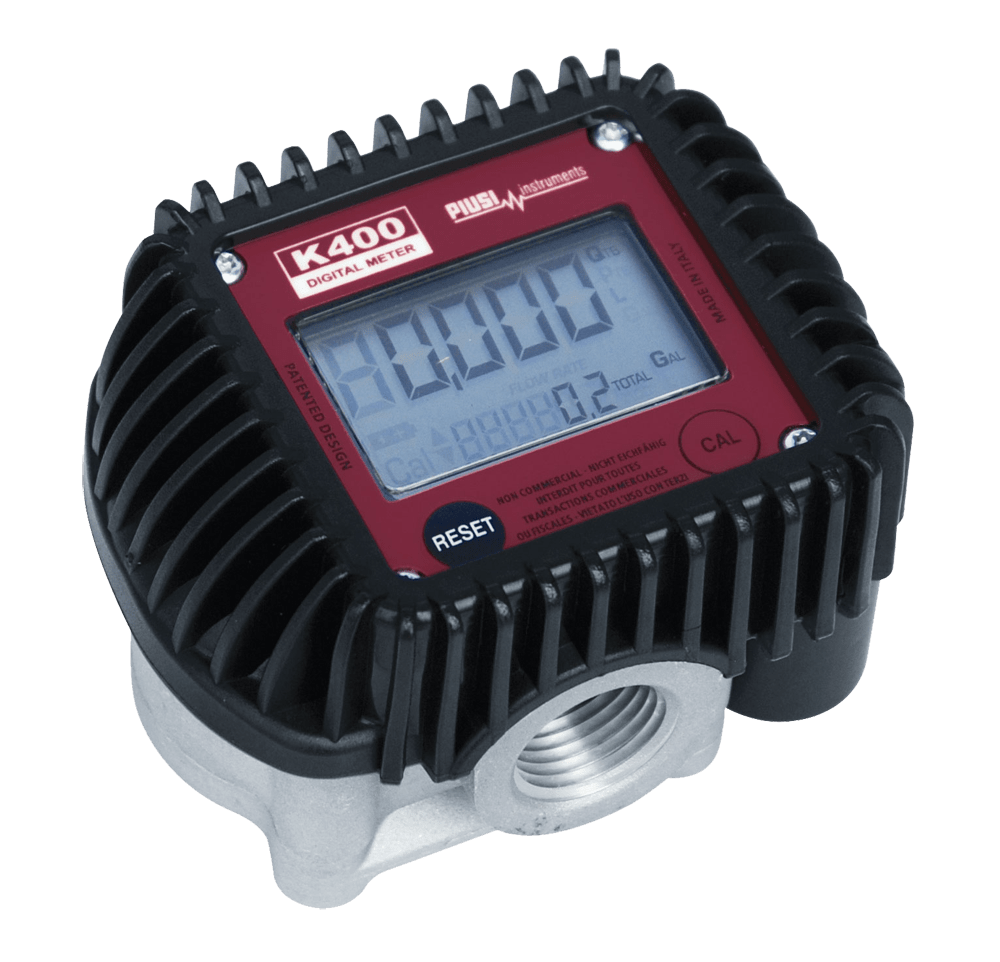

Product Information Piusi K400 Oval Gear Flow Meters Piusi K400 Oval Gear Meters are designed to meet a wide range of product delivery measuring requirements in non-resale applications. The oval gear measuring principle adopted offers high precision and low pressure losses Pulser version also available, this can provide an output to other fuel management / monitoring systems Standard non-pulser versions are supplied complete with digital display, showing; Resettable batch total with floating decimal point between 0.001 to 999.99 Non resettable total, 8-digit to 99999999 Photograph shows K400 non-pulser, other versions vary slightly in appearance Wetted Components Housing Anodised Aluminium Seals NBR (Nitrile / Buna-N) Gears Acetyl Resin (Delrin) Gear Shafts Unknown Technical Information – Local Display Versions Model Number K400 Oil (F00484000) K400 Screenwash (000483020) K400 Oil QUART/NPT (F00484010) Display Digital Digital Digital Power Source 2×1.5vDC Batteries 2×1.5vDC Batteries 2×1.5vDC Batteries Power Consumption Unknown Unknown Unknown Output Signal None None None Pulses Per Litre None None None Accuracy ±0.5% ±0.5% ±0.5% User Calibration Yes Yes Yes Inlet / Outlet Fittings 1/2″ BSP Female 1/2″ BSP Female 1/2″ NPT Min Flowrate 1 lpm 1 lpm 0.26 US Gal / Min Max Flowrate 30 lpm 30 lpm 7.90 US Gal / Min Max Pressure 70 Bar / 1015 PSI 70 Bar / 1015 PSI 70 Bar / 1015 PSI Pressure Loss 0.5 Bar / 7.25 PSI 0.5 Bar / 7.25 PSI 0.5 Bar / 7.25 PSI Temperature Range Unknown Unknown Unknown Weight 0.5 Kg 0.5 Kg 0.5 Kg Technical Information – Pulse Versions Model Number K400 Oil Pulser (F00440200) K400 Windscreen Pulser (00044007A) Display None None Voltage 0-28vDC Max 0-28vDC Max Power Consumption NA NA Output Signal Reed 1/0, Max 3W Reed 1/0, Max 3W Pulses Per Litre 100 100 Accuracy ±0.5% ±0.5% User Calibration Yes Yes Inlet / Outlet Fittings 1/2″ BSP Female 1/2″ BSP Female Min Flowrate 1 lpm 1 lpm Max Flowrate 30 lpm 30 lpm Operating Pressure 10 Bar / 145 PSI 10 Bar / 145 PSI Max Pressure 100 Bar / 1450 PSI 100 Bar / 1450 PSI Pressure Loss 0.5 Bar / 7.25 PSI 0.5 Bar / 7.25 PSI Temperature Range Unknown Unknown Weight 0.5 Kg 0.5 Kg Ingress Protection IP65 IP65 Shown Below – Piusi K400 Pulse Meter – NO Local Display For Pulser versions, an optional Remote Electronic Display is available
