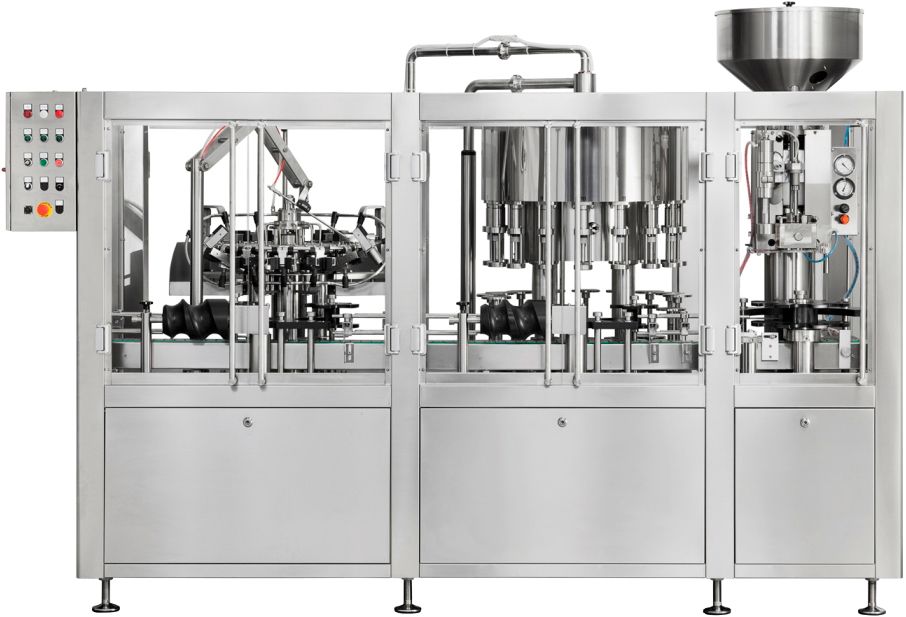

Bottling monobloc 12.12.1 with corker
ID: #1199012
Description
Full automatic monobloc filling 12.12.1 unit with rinser 12, filler 12 and corker for straight wine cork Rinser: the rinser is used when filling new glass bottle to remove particles such as dust, condensation water, small insects, etc. The utilization of a rinser gives the bottling plant additional product safety. With the appropriate options it is also possible to achieve an internal sterilization with a bacteria killing liquid. The bottle is gripped securely by the gripper at the bottleneck and then quickly turned upside down by the twist system. The treatment agent (sterile water, ozonized water, air, inert gas, aqueous cleaning solution, etc.) is then injected into the bottle via a nozzle. After an appropriate dripping time, the bottle is moved back on the conveyor. „No bottle no spray system“. If there is no bottle in the gripper the nozzle is not spaying. Optionally it is possible to install a two-step rinser system. For example, cleaning fluid and then blow out with air or inert gas. The cleaning liquid can optionally run through a recycling system. The cleaning solution is collected and pumped through a micro filter and then used again in recirculating. Filler: The plenty of times proven filling valves of the Evolution 2 series can work with gravity (drop pressure) as well as under negative pressure (light vacuum). Filling under slight negative pressure (optional) on the one hand causes a better release of the filling and on the other hand, it is helpful with slightly foaming products and prevents dripping on the filling valve with worn-out seals. The height of the bottle is adjusted by handwheel (manual) or can also be done electrical (optionally). The filling height is set through appropriate spacers which are used in the filling valves. Pneumatic lifting of the bottle plate and mechanical lowering via cam (no air consumption). The tub has a central liquid inlet and is mirror polished inside. Total discharge drain with ball valve installed on the bottom of the tank. The opening of the filling valves for sterilization (for example with steam) or for cleaning takes is achieved by stainless steel clips. Filling valves are easy to remove and can be completely disassembled easily. Optionally available are two models of cleaning adapters that are used for final cleaning. A cleaning water collection trough is installed under the filling valves or in an alternative a cleaning rim with dummy bottles which allows to collect the cleaning solution under the valves and wash the valves also in countercurrent (backwash). The liquid feed into the filler tank is controlled via sensors. The sensors will command the pneumatically operated product supply valve and pump control. Corker for natural, agglomerated, and synthetic corks for wine bottles. Construction of stainless steel with stainless steel head, bronze chariots, and jaws of hardened and ground N690 steel. Simple adjustment of the closure of the jaws on an eccentric pivot. Big capacity hopper with new-design mechanical cork selection disc. Cork plunger mounted on self-lubricating bushes and rods of chrome-plated steel ground for absolute absence of clearance even due to wear. As an option is available the innovative vacuum closure does not use any vacuum pumps but a yet of compressed air exploiting the principles of Venturi tube. The frame of the monobloc is made of stainless steel. All doors are equipped with safety devices in the hinge. The control of the monobloc is carried out via a central control cabinet made of stainless steel. The system is easy and clear to use and also the format change can be accomplished quickly. Thanks to the modular design and the wide range of additional options, the machine can be optimally adapted to the needs of the company. The system is supplied with a belt, belt drive, and bottle collection table. Besides, larger bottle-feeding tables are available Ø600-800-1000 mm, and bottle collecting tables Ø600-800-1000 mm with belt drive at the end of the line. Belt connections between different machines are available on request (options). Filling Monoblock in linear design with single-head corker for straight cork Rinser: 12 grippers Filler: 12 valves Capper: single head corker with fully automatic cork distribution
Last Updated
14 August 2026, 22:24 UTC
Store Information
More from Inderst Landhandel - Fachmarkt Hof, Haus, Garten und Haustiere
View all/filters:strip_exif()/hydropresse-speidel-edelstahl-20lt.jpg)
Hydropresse Speidel Edelstahl 20lt
Contact for price
Hydropresse Speidel aus Edelstahl. Der Edelstahldeckel mit Schnellspanner erleichtert die Bedienung und die Auslaufrinne aus Edelstahl ist schnell und einfach gereinigt. Das macht das Pressen von Saft, Früchten, Honigwaben, eingelegtem Tabak oder Zitrusfrüchten zum reinen Vergnügen. Obst, Trauben, Beeren usw. mahlen und in die Hydropresse füllen, Wasserhahn öffnen und der Druck des einfließenden Leitungswassers presst das Mahlgut von innen nach außen gegen das Korbgitter. Durch Zu- oder Aufdrehen des Wasserhahns lassen sich Pressdruck und Pressdauer regulieren. Die schnelle Pressung und die kurzen Fließwege schonen die Vitamine; der Saft hat ein wundervoll frisches Aroma. Durch den hohen Pressdruck erzielen Sie eine außergewöhnlich hohe Saftausbeute, auch dann, wenn der Presskorb nur zum Teil gefüllt ist. Alle Speidel Hydropressen werden komplett mit Einlegesack und Spritzschutzhaube geliefert. • Größe/Korbinhalt: 20lt • Höhe: 83cm • Großer Ø: 44cm • Unterstellhöhe: 31cm
/filters:strip_exif()/hydropresse-imf-inox-170lt-schwenkwagen.jpg)
Hydropresse frutty Edelstahl 170lt + Schwenkwagen
Contact for price
Obst, Trauben, Beeren usw. mahlen und in die Hydropresse füllen, Wasserhahn öffnen und der Druck des einfließenden Leitungswassers presst das Mahlgut von innen nach außen gegen das Korbgitter. Die Hydropresse kann auch zum Pressen von Honigwaben, Tomaten, eingelegtem Tabak oder Zitrusfrüchten verwendet werden. Die schnelle Pressung und die kurzen Fließwege schonen die Vitamine; der Saft hat ein wundervoll frisches Aroma. Durch den hohen Pressdruck erzielen Sie eine außergewöhnlich hohe Saftausbeute, auch dann, wenn der Presskorb nur zum Teil gefüllt ist. Ein energiesparender, genial einfacher Antrieb: Gartenschlauch an die normale Wasserleitung anschließen und den Wasserhahn öffnen. Das Leitungswasser dehnt die eingebaute Gummimembrane nach außen und drückt das Mahlgut gegen das Korbgitter. Durch Zu- oder Aufdrehen des Wasserhahns lassen sich Pressdruck und Pressdauer regulieren. Zur Herstellung von Fruchtsäften aus Äpfeln, Birnen, Trauben oder Beeren. Die Hydropresse ist mit einem praktischen Schwenkwagen ausgestattet damit das Gerät bequemer zu transportieren und der Tresterkuchen im Einlegesack leichter zu entleeren ist. • Größe/Korbinhalt: 170lt • Presse fahrbar mit 4 Rädern aus Edelstahl • Presse mit Schwenkwagen aus Edelstahl zum einfachen Entleeren. • Korb Ø54 H74cm • Maße: 88x90x135cm • Maximaler Druck: 2,5bar
/filters:strip_exif()/hydropresse-imf-inox-170lt-schwenkwagen.jpg)
Idropressa frutty Inox 170lt ribaltabile
Contact for price
Macinare frutta, uva, bacche, ecc. e riempire l’idropressa, aprire il rubinetto e la pressione dell’acqua spinge il materiale macinato contro la griglia del cestello. L’idropressa può essere utilizzata anche per la pressatura di favi, pomodori, tabacco o agrumi. La rapidità di pressatura e il breve percorso del flusso proteggono le vitamine; il succo ha un aroma fresco. A causa dell’alta pressione si ottiene un alto rendimento di succo, anche se il cestello della pressa è solo parzialmente riempito. Una semplice fonte di energia che risparmia energia: Collegare il tubo da giardino e aprire il rubinetto dell’acqua. L’acqua espande la membrana in gomma integrata verso l’esterno e spinge il materiale verso la griglia del cestello. È possibile regolare la pressione e la durata della pressione aprendo e chiudendo il rubinetto. Idropressa per la produzione di succhi di frutta di mele, pere, uva o bacche. Il torchio idraulico IMF è dotato di un pratico cavalletto d‘ acciaio inossidabile su ruote, che rende facilmente trasportabile il torchio e il cesto comodamente svuotabile. • Capienza cestello: 170lt • pressa su ruote • cestello girevole per facilitare lo svuotamento • Cestello Ø54 H74cm • Misure: 88x90x135cm • Pressione max.: 2,5Bar
/filters:strip_exif()/hydropresse-imf-inox-170lt-schwenkwagen.jpg)
Bladder Press frutty S. Steel 170lt rotating
Contact for price
Grind fruit, grapes or berries and fill up the hydraulic press, turn the tap on and the pressure of the incoming tap water compresses the ground material from the inside to the outside against the mesh basket. The hydraulic press can also be used for pressing honeycomb, tomatoes, macerated tobacco or citrus fruit. The rapid pressing and the short flow distance preserve the vitamins; the juice has a wonderfully fresh aroma. Due to the high pressure applied, you achieve an exceptionally high juice yield, even if the press basket is only partially filled. An energy-saving, ingeniously simple drive mechanism: Connect up a garden hose to the normal domestic water supply and turn the tap on. The tap water expands the rubber diaphragm inside the press and presses the ground fruit against the mesh basket. The pressure and pressing time can be regulated by turning on the tap more or less. Hydropress IMF for the production of delicious fruit juices from apples, pears, grapes and berries. For larger quantities of grapes and other fruit. Mounted on a swivelling carriage, so that the appliance can be moved more comfortably and the pulp residues in the pressing sack are easier to discharge. • Capacity: 170lt • Press on 4 casters • Rotating basket for easier discharge • Basket Ø54 H74cm • Dimensions: 88x90x135cm • Max. pressure: 2,5bar
/filters:strip_exif()/band-papier-orig--pellenc-fixion2-60m-60roka.jpg)
Spool Paper original Pellenc AP25 30rolls/ box
Contact for price
It degrades after 6-9 months depending on use. Paper retains moisture and promotes deterioration of the binding. 0.44 mm steel wire. Average binding strength: 14 kg* Length: 200m * New binding with optimal laying
