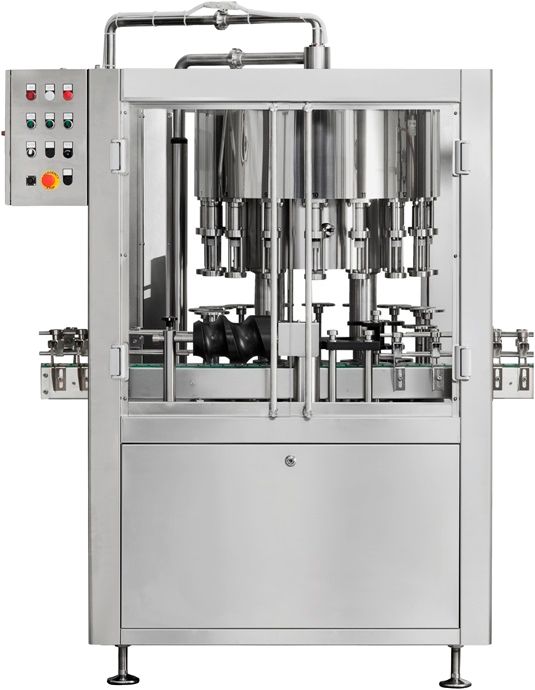

Bottling monobloc 12 valves
ID: #1226274
Description
Full automatic filling unit Filling Valves: The plenty of times proven filling valves of the Evolution 2 series can work with gravity (drop pressure) as well as under negative pressure (light vacuum). Filling under slight negative pressure (optional) on the one hand causes a better release of the filling and on the other hand, it is helpful with slightly foaming products and prevents dripping on the filling valve with worn-out seals. The height of the bottle is adjusted by handwheel (manual) or can also be done electrical (optionally). The filling height is set through appropriate spacers which are used in the filling valves. Pneumatic lifting of the bottle plate and mechanical lowering via cam (no air consumption). The tub has a central liquid inlet and is mirror polished inside. Total discharge drain with ball valve installed on the bottom of the tank. The opening of the filling valves for sterilization (for example with steam) or for cleaning takes is achieved by stainless steel clips. Filling valves are easy to remove and can be completely disassembled easily. Optionally available are two models of cleaning adapters that are used for final cleaning. A cleaning water collection trough is installed under the filling valves or in an alternative a cleaning rim with dummy bottles which allows to collect the cleaning solution under the valves and wash the valves also in countercurrent (backwash). The liquid feed into the filler tank is controlled via sensors. The sensors will command the pneumatically operated product supply valve and pump control. Other options: hot-filling equipment, high-vacuum, or light-pressure filling. Device for foam extraction. Number of filling valves: 12 Maximum capacity: 1500 lt/h Maximum capacity in bottles per hour: 1700 bottles/h
