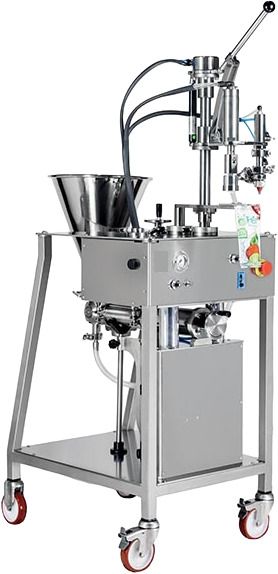

Piston filler Doypack 20-680cc
ID: #1227540
Description
This semiautomatic air driven machine is suitable for filling and capping flexible pouches (with an already existing spout) with liquid/semi-liquid products by mean of a volumetric piston filler and closing the same with one size of plastic screw cap. All the parts in contact with the product are manufactured with AISI 316 L stainless steel and food grade gaskets. The cap is tightened by a pneumatic motor with torque regulation. This unit can fill viscous products containing soft particulates or fibres and it is suitable for hot filling (100°C). Technical features: The machine main frame is stainless steel AISI 304 made, on wheels. All supports and shaft on the machine, that could get in contact with the product are stainless steel AISI 304 made. Stainless steel collar support for one format of pouch. Pouch manual individual positioning. Volumetric filling unit composed by: • 1 volumetric dosing unit AISI 316 L stainless steel made • 1 food grade set of gaskets • 1 three ways rotary valve • 1 pneumatic two ways no drop valve with shut off nozzle • Food grade flexible hose • Hose tail for connecting the machine to the product storage tank Single head capping unit composed by: • 1 pneumatic motor • 1 stainless steel chuck for one size of plastic screw cap • Manual regulation of the height of the machine depending on the operator stature • Nitrogen injection unit Working principle: The operator puts the pouch on the collar. The volumetric filler determines the volume of product by a hand-wheel regulation. Suction and filling speed are both adjustable in compliance with the requirements. By manually moving a lever, the filling valve goes in working position; the operator starts the filling cycle by pressing a button. At the end of the filling cycle, the machine can inject nitrogen in the pouch hollow space for increasing the product shelf life and helping preservation. The nitrogen injection time and flow are both adjustable through a delay and a pressure regulator. Successively, the operator puts the cap on the spout and moves the closing head in capping position, through the lever system. The cap tightening is performed by pressing the start button. The cap torque application is adjustable. Air consumption: ~250 Nl/min Requirements: compressed air 2÷6 bar
Last Updated
14 August 2026, 22:57 UTC
Store Information
More from Inderst Landhandel - Fachmarkt Hof, Haus, Garten und Haustiere
View all/filters:strip_exif()/kaese-harfe-edelstahl-40x30cm.jpg)
Käse Harfe Edelstahl 40x30cm
Contact for price
Die Käseharfe wird verwendet um den Bruch zu schneiden. • Harfenbreite: 30 cm • Harfenhöhe/Drahtlänge: 40 cm • Anzahl Drähte: 10 Drähte • Länge schraubbarer Griff: 70 cm • Material Harfe: rostfreiem Edelstahl AISI 304 (elektrolytisch poliert) • Material Kappe: Polyethylen (PE), lebensmittelechter Kunststoff
Käse Harfe Edelstahl 80x30cm
Contact for price
Die Käseharfe wird verwendet um den Bruch zu schneiden. • Harfenbreite: 30 cm • Harfenhöhe/Drahtlänge: 80 cm • Anzahl Drähte: 10 Drähte • Länge schraubbarer Griff: 70 cm • Material Harfe: rostfreiem Edelstahl AISI 304 (elektrolytisch poliert) • Material Kappe: Polyethylen (PE), lebensmittelechter Kunststoff
Käse Harfe Edelstahl 60x30cm
Contact for price
Die Käseharfe wird verwendet um den Bruch zu schneiden. • Harfenbreite: 30 cm • Harfenhöhe/Drahtlänge: 60 cm • Anzahl Drähte: 10 Drähte • Länge schraubbarer Griff: 70 cm • Material Harfe: rostfreiem Edelstahl AISI 304 (elektrolytisch poliert) • Material Kappe: Polyethylen (PE), lebensmittelechter Kunststoff
/filters:strip_exif()/regenmesser-imf-60mm-12stka.jpg)
Regenmesser IMF 60mm 12St/Ka
Contact for price
Regenmesser mit 60 mm Skala. Die Skala des Regenmessers zeigt den Niederschlag in Millimetern an. 1 mm Niederschlag entspricht 1 lt pro m² .
/filters:strip_exif()/regenmesser-imf-150mm-18stka.jpg)
Regenmesser IMF 150mm 18St/Ka
Contact for price
Regenmesser mit 150 mm Skala. Die Skala des Regenmessers zeigt den Niederschlag in Millimetern an. 1 mm Niederschlag entspricht 1 lt pro m².
/filters:strip_exif()/verkorker-naturkork-sektmagnum-2639cm.jpg)
Corking machine natural corks champagne/Magnum 26/39cm
Contact for price
Corking machine for champagne and wine corks made of natural cork or synthetic material. Available in chrome-plated jaws, already adjusted for ideal cork height. • Corks: max. diameter 30,5 mm, max. height 46 mm • Operation Type: Lever • Material: Painted iron
